• It can be installed in any kind of machine, of
which the main spindle are R-8, NT #30, #40
or #50.
. It is convenient for the machinist who wants
increased production and performance from his
machine.
It is suitable for NC and general milling
machines.
• This device is easily installed needs only 5
seconds to change the cutting tool.
. Main power is air compression.
• This device is designed with safety device
controlled with solenoid valve. The power
drawbar cannot be operated while machine is
running.

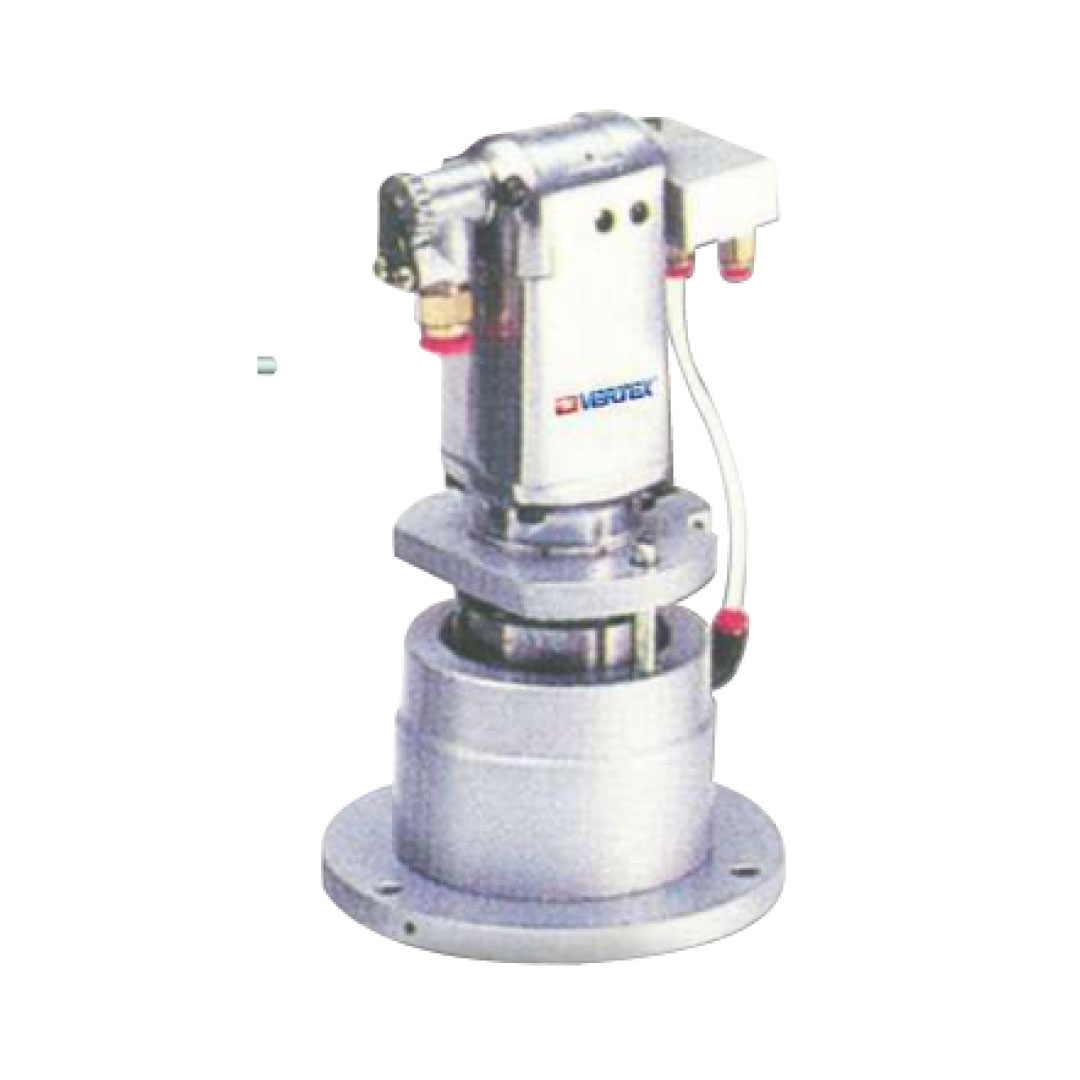

Air Power Drawbar (PD-150-R8)
₹74,360.00
It is suitable for NC and general milling
machines.
• This device is easily installed needs only 5
seconds to change the cutting tool.
| Order No | Speed | Torque | Air Pressure | Voltage For Magnetic Valve | G.W.Kgs | Packing LxWxH | Code No |
| PD-150 For NT-30 | 30,000 R.P.M | 150 ft-lb | 90 psi 6.3kg/cm² | AC 110V OR 220V DC 24VAC 110V |
9.8 | 650x300x200 | 1010-002 |
Availability: Out of stock
Reviews
There are no reviews yet.
