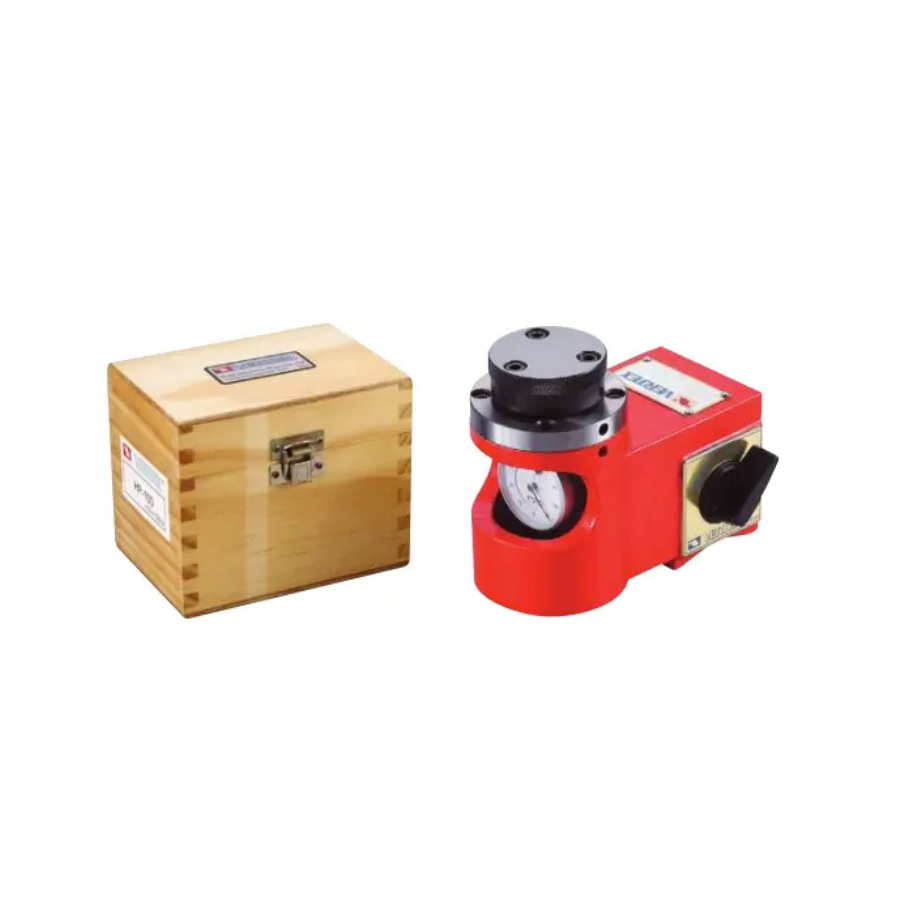

Height Presetter For Machining Center (HP-100)
₹26,450.00
- Locate the height presetter on a place suitable for a reference surface of work piece.
- Apply the cutter on the measuring surface and slowly lower the Z-axis. Then, cutter gets near to the measuring position.
- ]A distance from the reference surface to the tool tip can be measured easily and precisely so that this presetter is most
suitable not only for machining centers but for NC lathes and NC milling machines.
- Magnetic base function can be used in vertical position & horizontal position.
- HEIGHT:100mm±0.005 , 1 scale 0.01mm.
Height from reference surface
|
WEIGHT(kgs) |
| 100mm |
2.6 |
Availability: Out of stock
